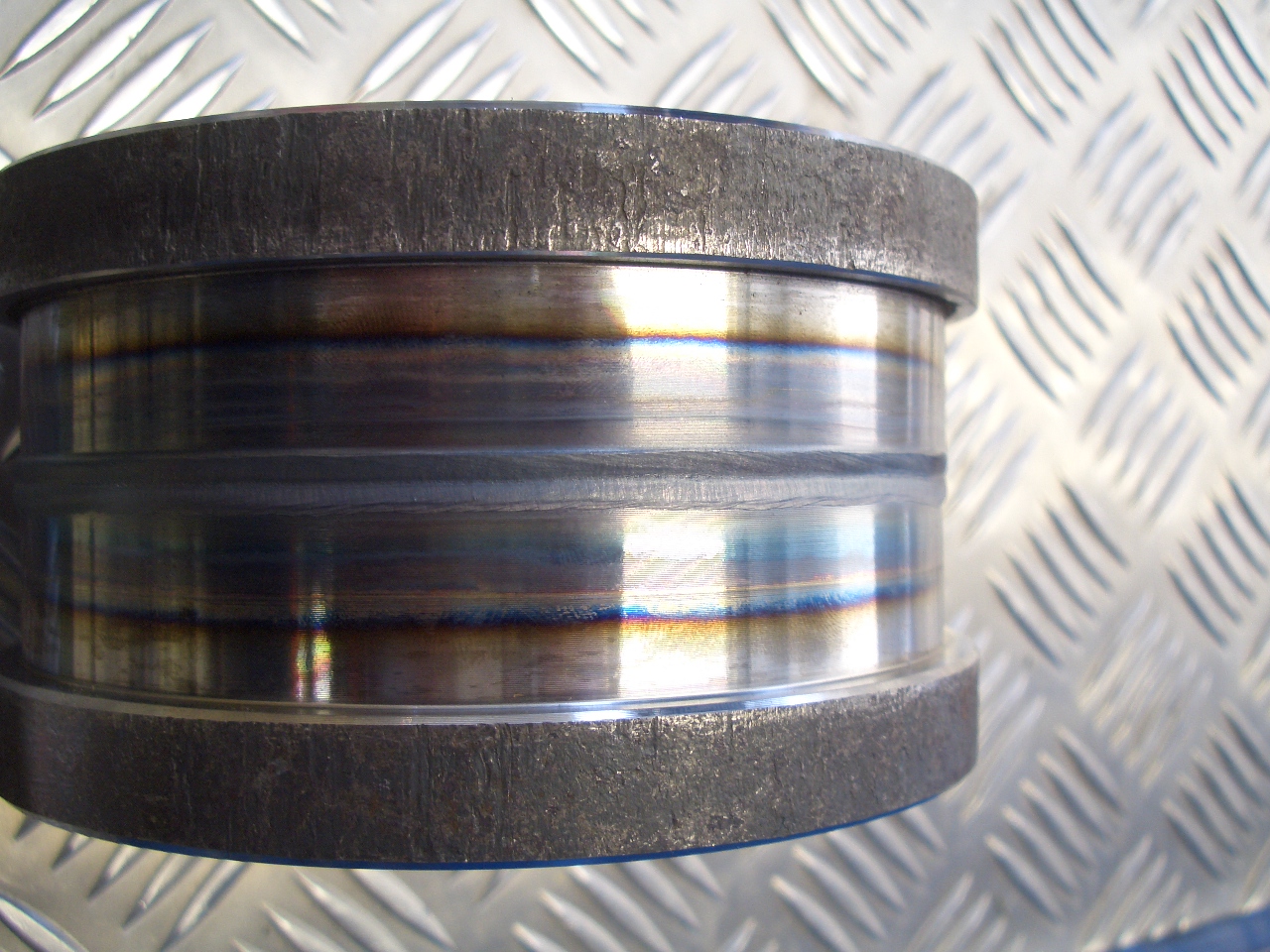

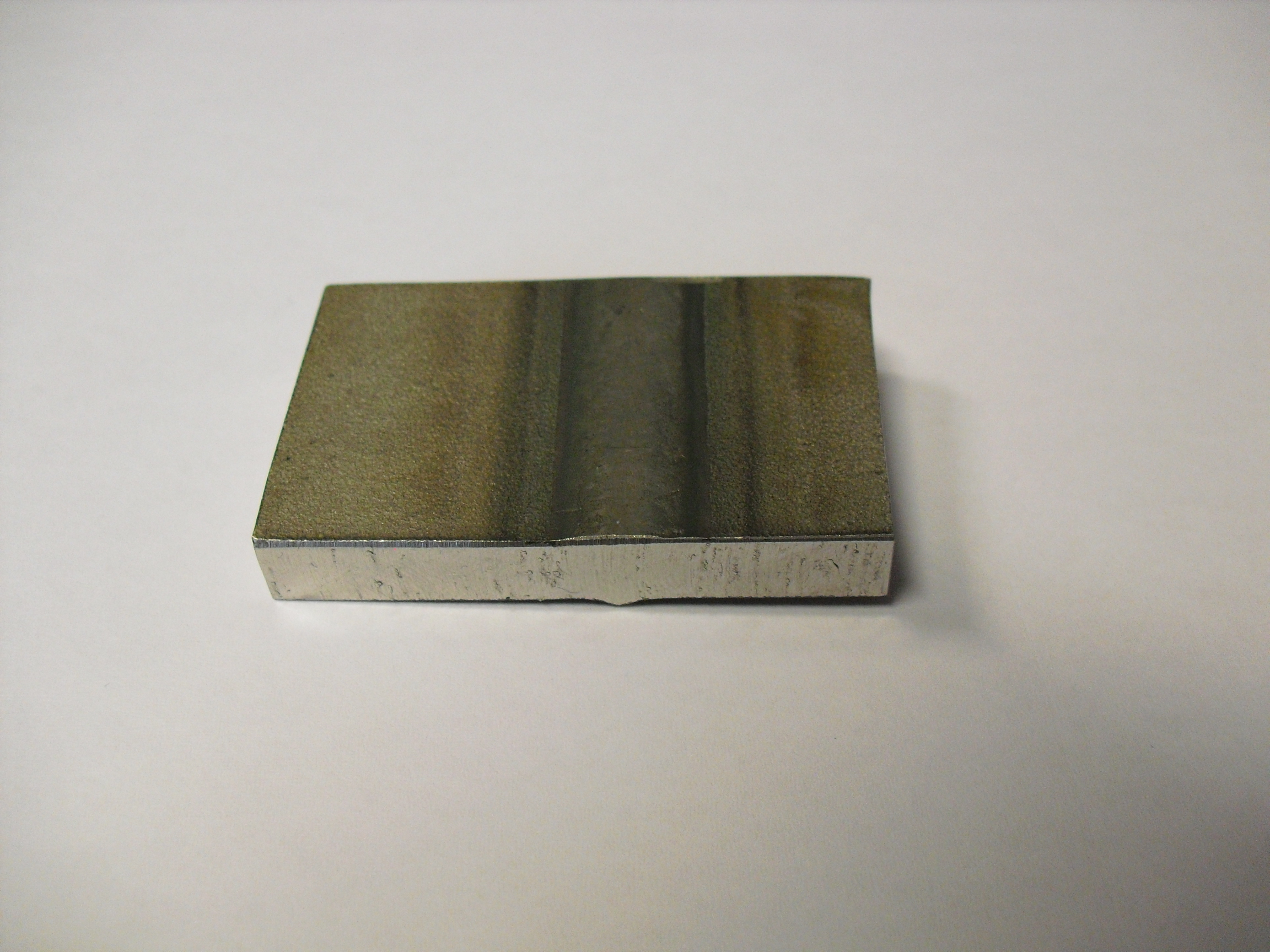

穿孔3
穿孔2
穿孔

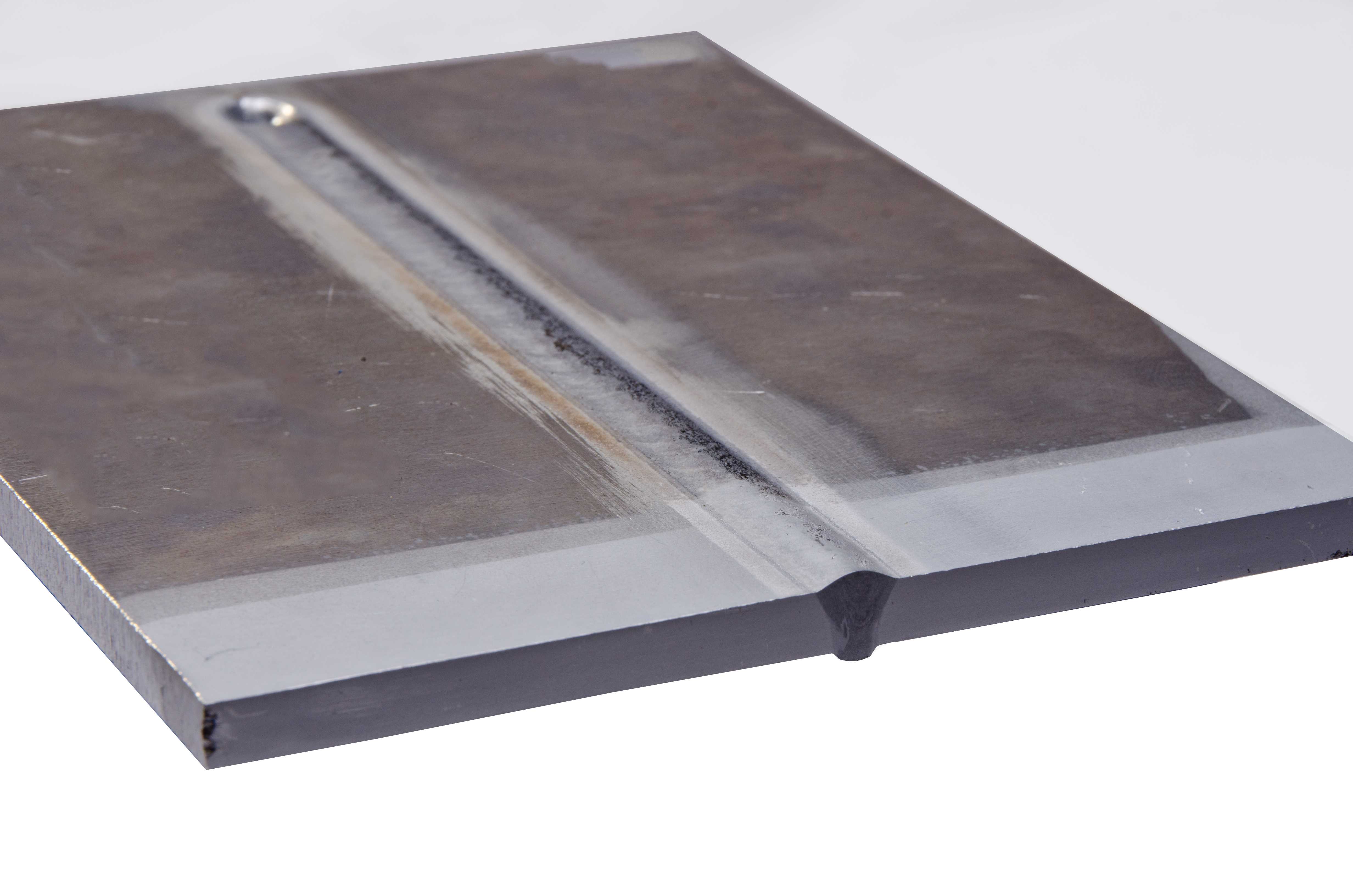

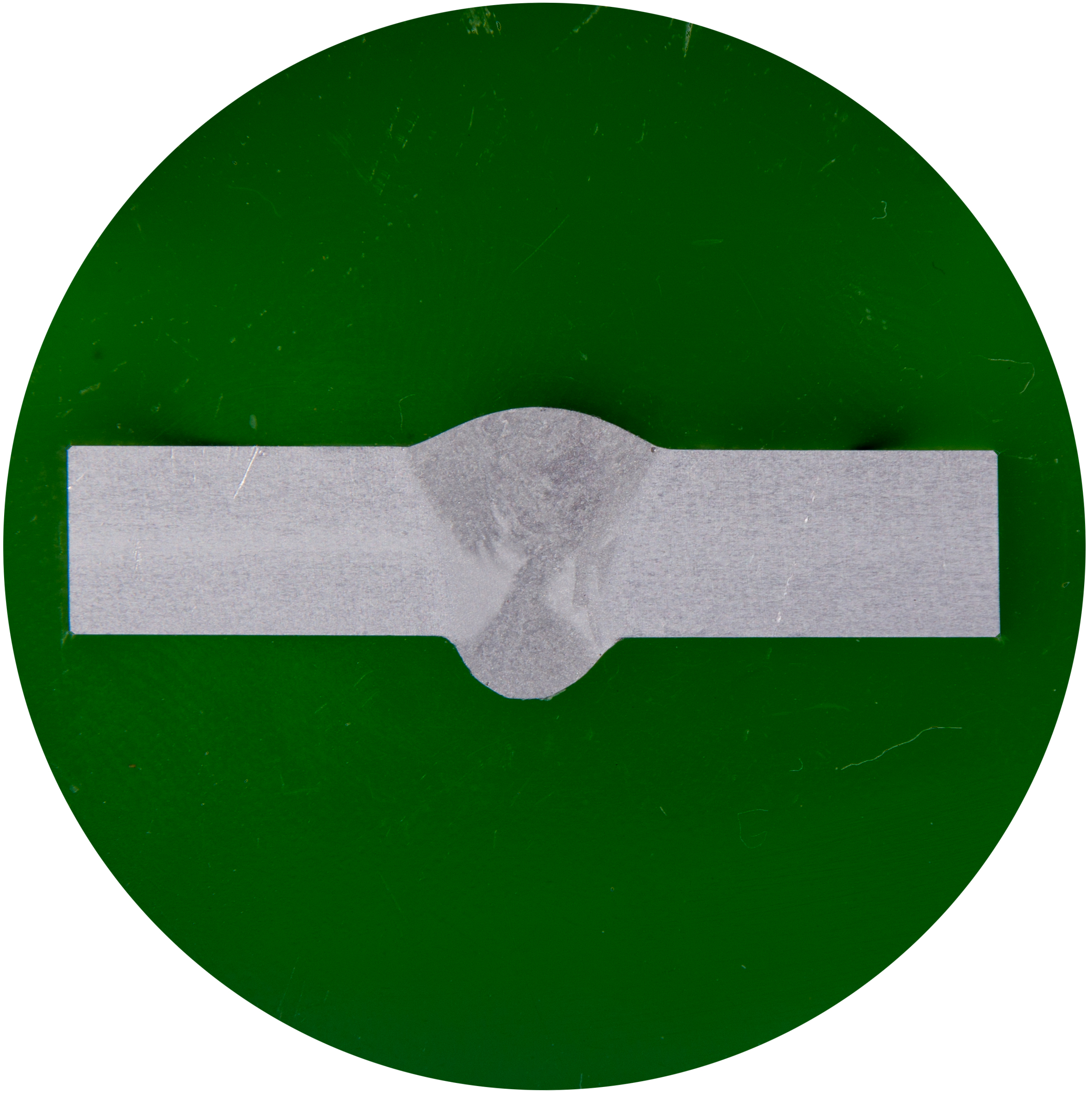

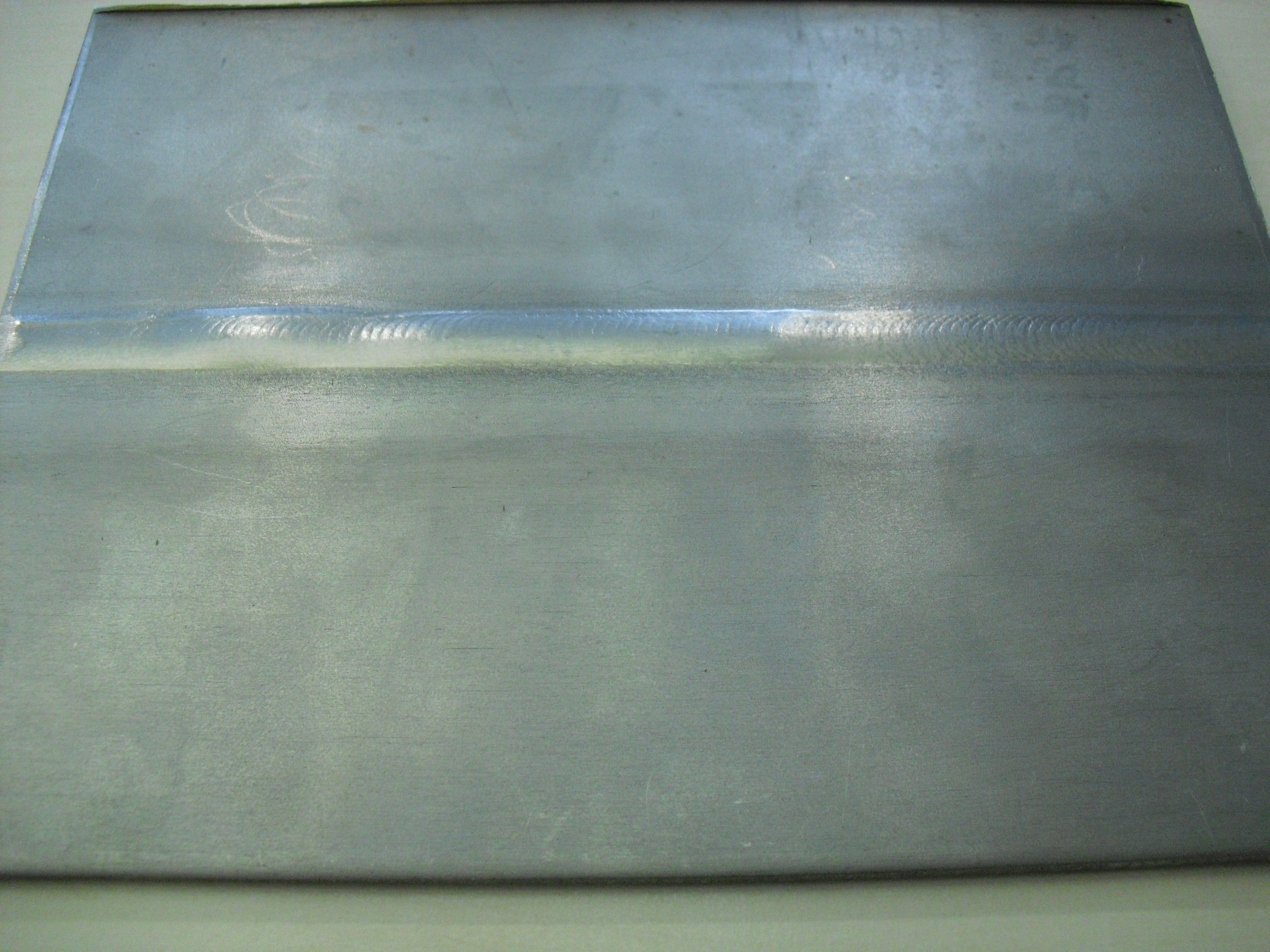

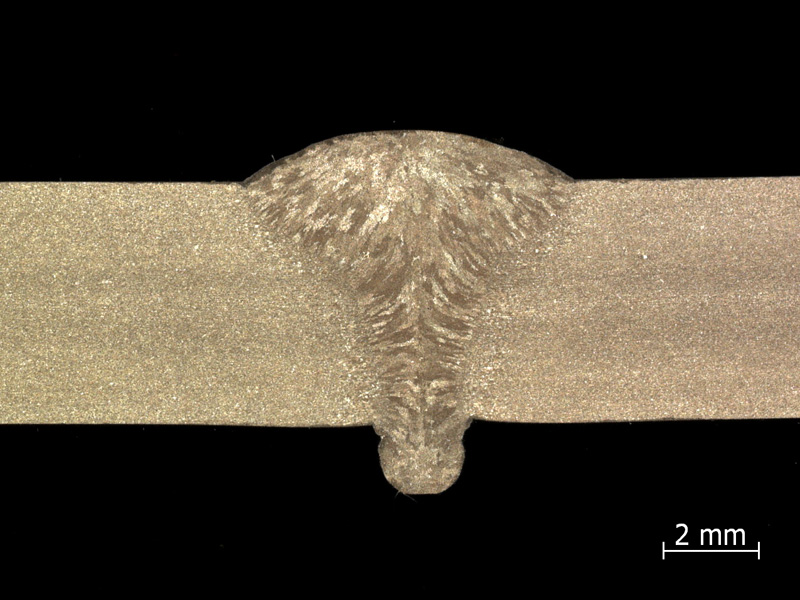

500穿孔4
500穿孔3
500穿孔2
500穿孔

PMI – 350 AC/DC TL等离子多功能交直流逆变焊机

多功能等离子焊接设备–焊接铝、钒、锶、钛、镍、锆、铜的理想解决方案,厚度可达10mm。

PMI – 350 AC/DC TL等离子多功能交直流逆变焊机

Multifunctional device – The ideal solution for welding Al, VA, St, Ti, Ni, Zr, Cu with a thickness of up to ~10mm.
多功能等离子焊接设备–焊接铝、钒、锶、钛、镍、锆、铜的理想解决方案,厚度可达10mm。



TECHNICAL DETAILS 技术细节

The electric arc is constricted by a cupper nozzle, which causes a higher density. The concentrated electric arc can be achieved in conjunction with the controllable able gas, higher welding speeds and a deeper penetration, which saves time and money. The tight bundling of the electric arc and the welding speed causes only a narrow heat-effected zone to form, which has a lower thermal distortion in the component result.

电弧因铜喷嘴集聚,产生高功率密度。 稳定集聚的电弧、数显可控的等离子气体、智能高速的焊接速度、理想化的熔深、极大节省了时间和金钱。集聚的电弧和焊接速度能够形成一个狭窄的热影响区,从而使工件热变形较小。

技术规格 Technical Specifications PMI – 350 ACDC TL
电源电压 supply voltage 3 x 400V AC ± 15% 50 / 60 Hz
主要连接 main connection 4 x 32A CEE plug, 6 mm²
焊接电流(60%ED) welding current (60% ED) 320A
焊接电流(100%ED) welding current (100% ED) 290A
控制范围 control range 3 ÷ 350A
空载电压 idle voltage 95V
引弧电流(100%ED) pilot current (100% ED) 30A
引弧电流控制范围 control range pilot current 0,5 – 50A
防护等级 degree of protection IP 21 S
手动等离子气体控制 manual plasma control 0,2 ÷ 2,5 l Ar/min
手动保护气体控制 manual protection gas control 1,0 ÷ 25,0 l Ar/min
脉冲频率 pulse rate 0,1 – 3300Hz
脉冲占空比 pulse balance 1 – 99%
脉冲断流 pulse break current 10 – 100%
脉冲时间 pulse time 0,15 – 3000 ms
断流时间 break time 0,15 – 3000 ms
断流 break current 5 – 350A
重量 weight 105 kg
尺寸 dimensions 1200x520x940 mm

Option:
PGR-05: electr. Plasma control, range 0,1 ÷ 5 l/min
SGR-20: electr. Inert gas control, range 0,5 ÷ 20 l/min

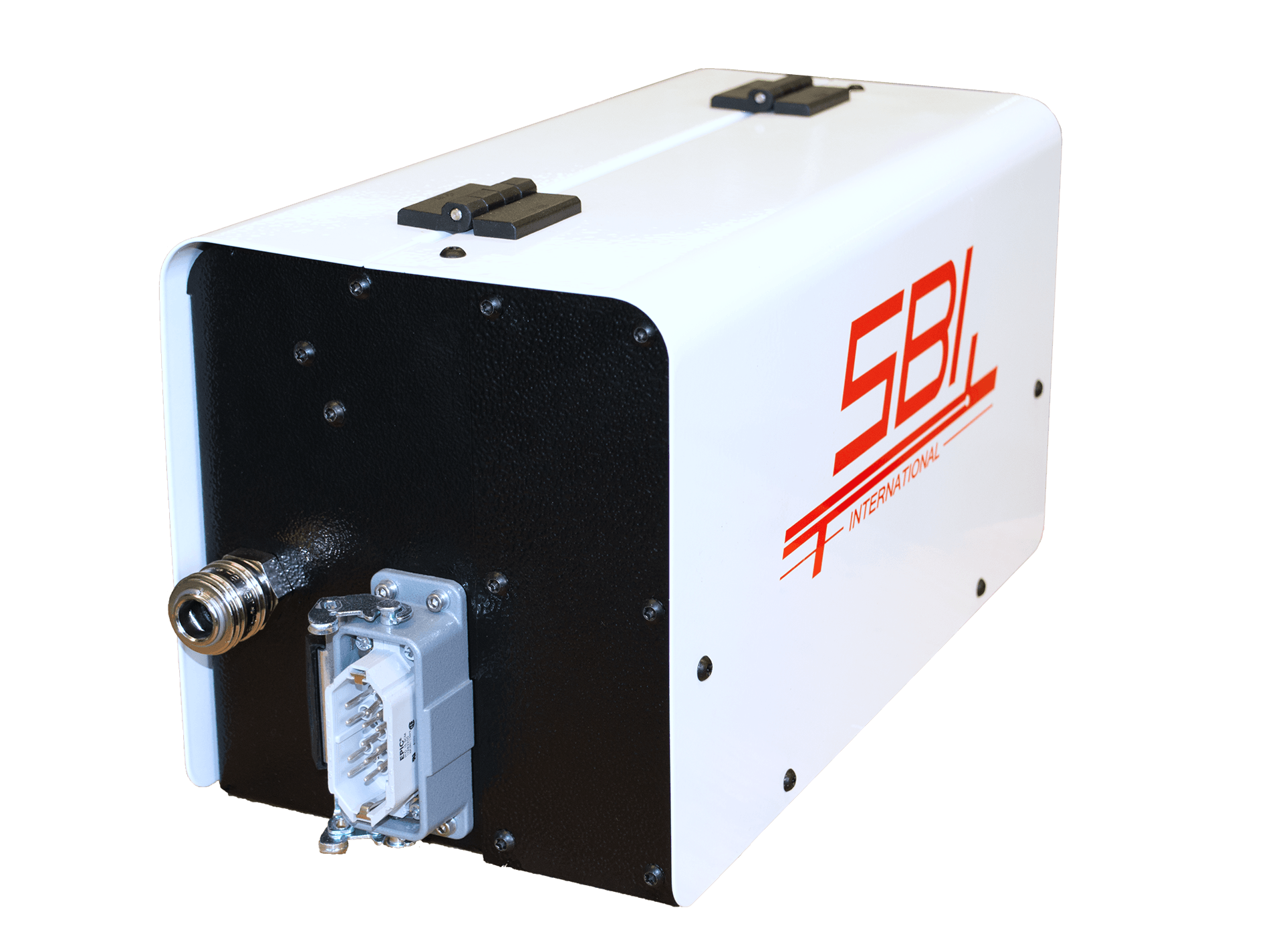

MCC: Motor Control Card to drive from an SBI wire case

  • high quality of the seam 高质量焊缝
  • high process safety 高安全系数
  • high degree of automation 高度自动化
  • high productivity due to high welding speed 高焊接速度实现高生产率

APPLICATIONS 应用:

The AC/DC soft plasma welding machine is used for sheets up to 10mm thick. The materials that are mainly used for AC/DC welding are aluminium, stainless steel, titanium, zirconium and copper.

交/直流等离子焊机用于厚度达10毫米的薄板。主要用于交直流焊接的材料有:铝、不锈钢、钛、锆和铜。
